Machine Room Less (MRL) Elevator

At Oscar Plus Elevators, we design our Machine Room Less (MRL) Elevators with a focus on efficiency, sustainability, and superior performance. Our compact and energy-efficient machines ensure smooth and safe operation while minimizing energy consumption. With advanced control and drive system technology, our MRL elevators are perfect for low to medium-rise buildings.

The Permanent Magnet Synchronous (PMS) Gearless Drive unit is installed inside the shaft, eliminating the need for a traditional machine room, significantly reducing construction costs and providing architectural flexibility.

With a speed range of 1.00-1.05 MPS and a capacity of 6 to 20 passengers, our MRL elevators are designed for modern infrastructure, offering seamless vertical mobility.

Key Features of MRL Elevators

1. Over-Mounted Main Engine (Standard Type)

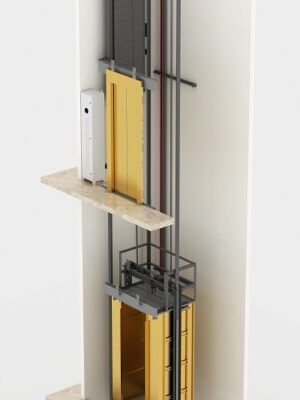

The main engine is installed in the space between the shaft top car and the elevator shaft wall. The control cabinet is positioned beside the top lift door, ensuring easy access and simplified maintenance.

2. Eco-Friendly Traction System

Our PMS Traction Machine is lightweight and compact, weighing half as much as a traditional traction machine. This enhances construction efficiency, increases space utilization, and minimizes the structural impact of the machine room on the building.

3. Compact Control Cabinet

We use a special-purpose, ultra-thin control cabinet, custom-designed to optimize shaft space and enhance the building’s efficiency.

4. Energy-Efficient Car Lighting

Car lighting accounts for approximately 40% of total elevator energy consumption. Oscar Plus Elevators integrates long-lasting LED lights instead of traditional halogen lamps. These LED lights last 10 times longer and save up to 80% in energy costs.

Standard Features

✅ Automatic Rescue Device (ARD) with Voice-Enabled Emergency Backup System (VEEBS)
✅ Auto Phase Reversal (APR) for Continuous Operation
✅ Jerk-Free, Smooth Ride
✅ Infrared Full-Length Door Sensors (154 Beams) for Enhanced Safety
✅ Motor Thermal Protection for Optimal Performance
✅ Variety of Door Options (Different Widths & Heights)
✅ Compliant with BIS & EN Standards
✅ Simplex Collective – Selective Control System
✅ Fireman Operation for Emergency Situations
✅ Cabin Call Cancellation / Erase Function
✅ Voice Announcement System for User Convenience
✅ Emergency Light with Battery Backup
✅ Multiple Speed Ranges (0.3 MPS to 3 MPS)
✅ Door Open & Close Buttons in the Cabin
✅ Crossflow Blower Fan for Ventilation
✅ Emergency Alarm with Battery Backup
✅ Top-of-the-Cabin Inspection Feature
✅ Emergency Brake Release & Manual Operation
✅ Re-Open Hall Call Button Function
✅ Electro-Mechanical Landing Locks for Additional Security
✅ Cabin Fan & Light Shut-Off System
✅ Double Press Call Cancellation
✅ Overload Protection with Voice Announcement

Optional Features

✔️ Duplex & Triplex Functionality Available
✔️ Selectable Service Floor Function
✔️ 2-Hour Fire-Rated Doors Approved by CBRI-IIT, Roorkee
✔️ Braille Push Buttons for Accessibility
✔️ Wide Range of LCD / TFT Displays for Floor Indication
✔️ Customizable Flooring – Vitrified Tiles, Wooden, PVC
✔️ Access Control System for Enhanced Security
✔️ Premium Stainless Steel & Colored SS Finishes for Cabins & Doors
✔️ Available Finishes – Gold, Rose Gold, Black, Copper, and More
✔️ Full Vision & Small Vision Glass Doors
✔️ Push & Touch Panel COP / LOP for Modern Control
✔️ Designer Ceilings with Laser-Cut Patterns & Chandeliers
✔️ Intercom for Convenient Communication

MRL Elevator Size Chart

Passengers	Load (kg)	Car Inside (mm) (W x D)	Elevator Well (mm) (W x D)	Entrance Width (mm)
4 Persons	272 kg	1000 x 800	1600 x 1250	700 mm
5 Persons	340 kg	1000 x 900	1600 x 1350	700 mm
6 Persons	408 kg	1000 x 1100	1600 x 1550	700 mm
8 Persons	544 kg	1100 x 1300	1850 x 1800	800 mm
10 Persons	680 kg	1300 x 1350	2150 x 1900	900 mm
13 Persons	884 kg	1500 x 1500	2350 x 2100	1000 mm
15 Persons	1020 kg	1600 x 1750	2450 x 2350	1200 mm
